Timeline

Dynamic timeline component for tracking mission progress, quest objectives, and sequential tasks with real-time updates.

Options

Option	Type	Required	Default	Description
`id`	string	Yes	`nil`	Unique timeline identifier
`title`	string	Yes	`nil`	Timeline title (supports markdown)
`description`	string	No	`nil`	Timeline description (supports markdown)
`position`	string	No	`'right-center'`	Position: `'top-left'`, `'top-center'`, `'top-right'`, `'left-center'`, `'center'`, `'right-center'`, `'bottom-left'`, `'bottom-center'`, `'bottom-right'`
`icon`	string	No	`nil`	FontAwesome icon class
`iconColor`	string	No	`'#71717A'`	Icon color (hex or CSS color name)
`iconAnimation`	string	No	`nil`	Icon animation: `'spin'`, `'spinPulse'`, `'spinReverse'`, `'pulse'`, `'beat'`, `'fade'`, `'beatFade'`, `'bounce'`, `'shake'`
`tasks`	table	Yes	`{}`	Array of task objects (see Task Properties)
`opacity`	number	No	`1.0`	Background opacity (0.0-1.0)

Task Properties

Option	Type	Required	Default	Description
`id`	string	Yes	`nil`	Unique task identifier
`label`	string	Yes	`nil`	Task display text (supports markdown)
`description`	string	No	`nil`	Task description (supports markdown)
`status`	string	Yes	`nil`	Task status: `'pending'`, `'active'`, `'completed'`, `'failed'`
`icon`	string	No	Auto	FontAwesome icon class (overrides default status icon)
`iconColor`	string	No	Auto	Icon color (hex or CSS color name)
`iconAnimation`	string	No	Auto	Icon animation (custom icons require explicit animation)

Task Status Icons

Default icons assigned by status (can be overridden with custom icon):

pending: Circle icon (gray)
active: Spinner icon (blue, auto-spinning)
completed: Check circle icon (green)
failed: Times circle icon (red)

Functions

-- Show a timeline with tasks
exports.lation_ui:showTimeline(data)

-- Hide a timeline
exports.lation_ui:hideTimeline(id)

-- Update task(s) - supports both single and multiple updates
exports.lation_ui:updateTimelineTask(timelineId, taskData, status)
-- Single task: updateTimelineTask(timelineId, taskId, status)
-- Multiple tasks: updateTimelineTask(timelineId, tasksArray)

-- Add a new task to timeline
exports.lation_ui:addTimelineTask(timelineId, task)

-- Update timeline properties (title, description, icon, etc.)
exports.lation_ui:updateTimeline(timelineId, updates)

-- Get the currently active timeline ID
local timelineId = exports.lation_ui:getActiveTimeline()

Important Notes

Only one timeline can be active at a time - showing a new timeline will automatically hide any existing timeline
Tasks are displayed with a vertical timeline showing status progression
Active task status automatically triggers spinning animation on default icons
Custom task icons do not auto-animate unless iconAnimation is explicitly set
Timeline state is not preserved when hidden - you must pass full configuration when showing again

Example

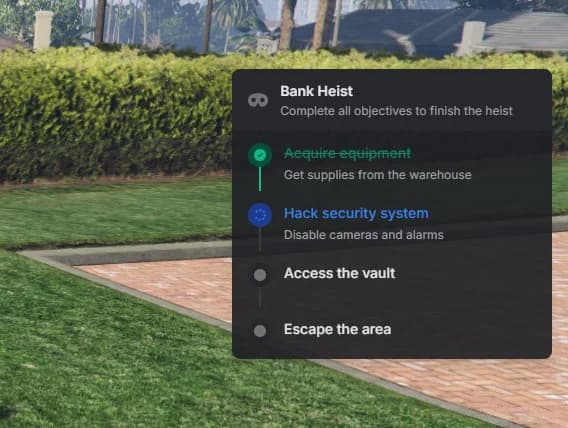

-- Basic timeline with mission tasks
exports.lation_ui:showTimeline({
    id = 'heist_mission',
    title = 'Bank Heist',
    description = 'Complete all objectives to finish the heist',
    position = 'right-center',
    icon = 'fas fa-mask',
    iconColor = '#EF4444',
    opacity = 0.95,
    tasks = {
        {
            id = 'gear',
            label = 'Acquire equipment',
            description = 'Get supplies from the warehouse',
            status = 'completed'
        },
        {
            id = 'hack',
            label = 'Hack security system',
            description = 'Disable cameras and alarms',
            status = 'active'
        },
        {
            id = 'vault',
            label = 'Access the vault',
            status = 'pending'
        },
        {
            id = 'escape',
            label = 'Escape the area',
            status = 'pending'
        }
    }
})

-- Update single task when objective is completed
exports.lation_ui:updateTimelineTask('heist_mission', 'hack', 'completed')

-- Update multiple tasks at once (recommended for sequential progression)
exports.lation_ui:updateTimelineTask('heist_mission', {
    { id = 'hack', status = 'completed' },
    { id = 'vault', status = 'active' }
})

-- Add a new task dynamically
exports.lation_ui:addTimelineTask('heist_mission', {
    id = 'bonus',
    label = 'Bonus objective',
    description = 'Collect additional loot',
    status = 'pending',
    icon = 'fas fa-star',
    iconColor = '#F59E0B'
})

-- Update timeline properties (e.g., completion message)
exports.lation_ui:updateTimeline('heist_mission', {
    description = 'Heist Complete! +$50,000'
})

-- Hide timeline when mission ends
exports.lation_ui:hideTimeline('heist_mission')

Use Cases:

Mission/quest tracking systems
Multi-step tutorials or onboarding
Heist or robbery progress tracking
Delivery route progression
Achievement or challenge progress
Event phase indicators
Crafting or building sequences
